Вид присоединения: конус 24°
Резьба: метрическая
Диаметры рукавов: DN5 до DN38

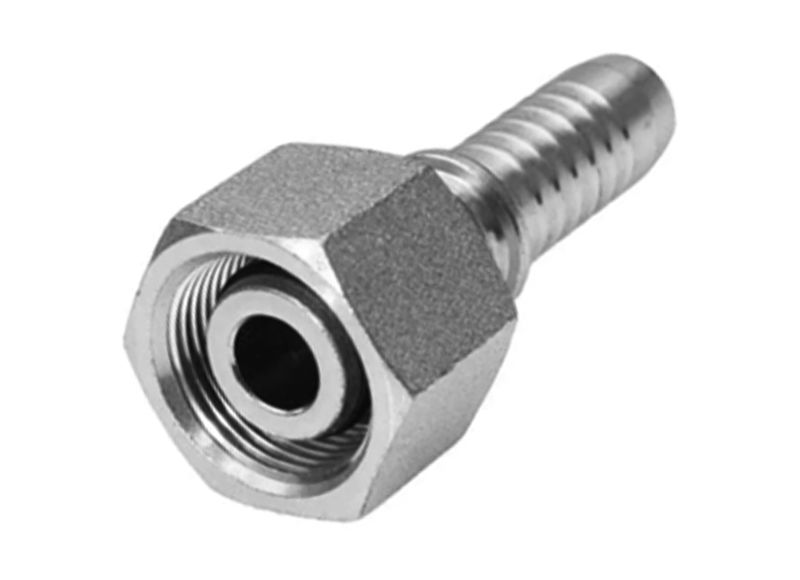

Наконечник DKOL
|
Код товара |
DN |
Размер рукава |
Резьба |
A mm |
D mm |
H mm |
Давление |
|---|---|---|---|---|---|---|---|
| FE0312L6 | 5 |
4.80 mm 3/16 " |
M12X1.5 | 25.50 | 6.00 | 14 |
250 bar 3626 psi |
| FE0314L8 | 5 |
4.80 mm 3/16 " |
M14X1.5 | 25.50 | 8.00 | 17 |
250 bar 3626 psi |
| FE0412L6 | 6 |
6.40 mm 1/4 " |
M12X1.5 | 21.00 | 6.00 | 17 |
250 bar 3626 psi |
| FE0414L8 | 6 |
6.40 mm 1/4 " |
M14X1.5 | 23.50 | 8.00 | 17 |
250 bar 3626 psi |
| FE0416L10 | 6 |
6.40 mm 1/4 " |
M16X1.5 | 26.00 | 10.00 | 19 |
250 bar 3626 psi |
| FE0418L12 | 6 |
6.40 mm 1/4 " |
M18X1.5 | 26.00 | 12.00 | 22 |
250 bar 3626 psi |
| FE0514L8 | 8 |
7.90 mm 5/16 " |
M14X1.5 | 21.50 | 8.00 | 19 |
250 bar 3626 psi |
| FE0516L10 | 8 |
7.90 mm 5/16 " |
M16X1.5 | 26.00 | 10.00 | 19 |
250 bar 3626 psi |
| FE0518L12 | 8 |
7.90 mm 5/16 " |
M18X1.5 | 26.00 | 12.00 | 22 |
250 bar 3626 psi |
| FE0616L10 | 10 |
9.50 mm 3/8 " |
M16X1.5 | 23.50 | 10.00 | 19 |
250 bar 3626 psi |
| FE0618L12 | 10 |
9.50 mm 3/8 " |
M18X1.5 | 26.50 | 12.00 | 22 |
250 bar 3626 psi |
| FE0622L15 | 10 |
9.50 mm 3/8 " |
M22X1.5 | 27.00 | 15.00 | 27 |
250 bar 3626 psi |
| FE0818L12 | 12 |
12.80 mm 1/2 " |
M18X1.5 | 25.50 | 12.00 | 22 |
250 bar 3626 psi |
| FE0822L15 | 12 |
12.80 mm 1/2 " |
M22X1.5 | 27.50 | 15.00 | 27 |
250 bar 3626 psi |
| FE0826L18 | 12 |
12.80 mm 1/2 " |
M26X1.5 | 28.00 | 18.00 | 32 |
160 bar 2320 psi |
| FE1026L18 | 16 |
16.00 mm 5/8 " |
M26X1.5 | 30.00 | 18.00 | 32 |
160 bar 2320 psi |
| FE1030L22 | 16 |
16.00 mm 5/8 " |
M30X2 | 31.00 | 22.00 | 36 |
160 bar 2320 psi |
| FE1226L18 | 20 |
19.00 mm 3/4 " |
M26X1.5 | 29.00 | 18.00 | 32 |
160 bar 2320 psi |
| FE1230L22 | 20 |
19.00 mm 3/4 " |
M30X2 | 31.00 | 22.00 | 36 |
160 bar 2320 psi |
| FE1636L28 | 25 |
25.40 mm 1 " |
M36X2 | 33.50 | 28.00 | 41 |
100 bar 1450 psi |
| FE2045L35 | 32 |
31.80 mm 1.1/4 " |
M45X2 | 38.50 | 35.00 | 50 |
100 bar 1450 psi |
| FE2452L42 | 38 |
38.10 mm 1.1/2 " |
M52X2 | 39.00 | 42.00 | 60 |
100 bar 1450 psi |
