AME_LMG_EL
|

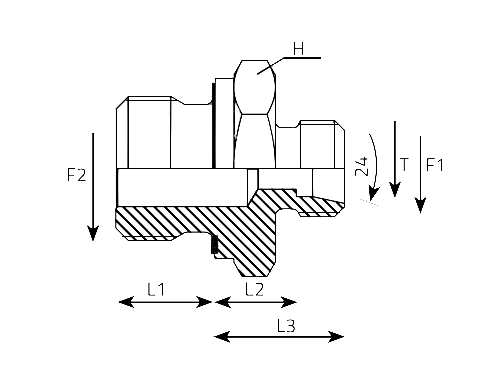

Код товара |
F1 | F2 |
H mm |
L1 mm |
L2 mm |
L3 mm |
T mm |
Давление |
|---|---|---|---|---|---|---|---|---|
| AME06LMG02EL.1 | M12X1.5 | 1/8 | 14 | 8.00 | 8.50 | 15.50 | 6 |
315 bar 4568 psi |
| AME06LMG04EL.1 | M12X1.5 | 1/4 | 19 | 12.00 | 10.00 | 17.00 | 6 |
315 bar 4568 psi |
| AME06LMG06EL.1 | M12X1.5 | 3/8 | 22 | 12.00 | 11.50 | 18.50 | 6 |
315 bar 4568 psi |
| AME06LMG08EL.1 | M12X1.5 | 1/2 | 27 | 14.00 | 12.00 | 19.00 | 6 |
315 bar 4568 psi |
| AME08LMG02EL.1 | M14X1.5 | 1/8 | 14 | 8.00 | 8.50 | 15.50 | 8 |
315 bar 4568 psi |
| AME08LMG04EL.1 | M14X1.5 | 1/4 | 19 | 12.00 | 10.00 | 17.00 | 8 |
315 bar 4568 psi |
| AME08LMG06EL.1 | M14X1.5 | 3/8 | 22 | 12.00 | 11.50 | 18.50 | 8 |
315 bar 4568 psi |
| AME08LMG08EL.1 | M14X1.5 | 1/2 | 27 | 14.00 | 12.00 | 19.00 | 8 |
315 bar 4568 psi |
| AME10LMG02EL.1 | M16X1.5 | 1/8 | 17 | 8.00 | 10.50 | 18.00 | 10 |
315 bar 4568 psi |
| AME10LMG04EL.1 | M16X1.5 | 1/4 | 19 | 12.00 | 11.00 | 18.50 | 10 |
315 bar 4568 psi |
| AME10LMG06EL.1 | M16X1.5 | 3/8 | 22 | 12.00 | 12.50 | 20.00 | 10 |
315 bar 4568 psi |
| AME10LMG08EL.1 | M16X1.5 | 1/2 | 27 | 14.00 | 13.00 | 20.50 | 10 |
315 bar 4568 psi |
| AME12LMG04EL.1 | M18X1.5 | 1/4 | 19 | 12.00 | 12.00 | 19.50 | 12 |
315 bar 4568 psi |
| AME12LMG06EL.1 | M18X1.5 | 3/8 | 22 | 12.00 | 12.50 | 20.00 | 12 |
315 bar 4568 psi |
| AME12LMG08EL.1 | M18X1.5 | 1/2 | 27 | 14.00 | 13.00 | 20.50 | 12 |
315 bar 4568 psi |
| AME12LMG12EL.1 | M18X1.5 | 3/4 | 32 | 16.00 | 14.00 | 21.50 | 12 |
315 bar 4568 psi |
| AME15LMG06EL.1 | M22X1.5 | 3/8 | 24 | 12.00 | 13.50 | 21.00 | 15 |
315 bar 4568 psi |
| AME15LMG08EL.1 | M22X1.5 | 1/2 | 27 | 14.00 | 14.00 | 21.50 | 15 |
315 bar 4568 psi |
| AME15LMG12EL.1 | M22X1.5 | 3/4 | 32 | 16.00 | 15.00 | 22.50 | 15 |
315 bar 4568 psi |
| AME18LMG06EL.1 | M26X1.5 | 3/8 | 27 | 12.00 | 14.00 | 21.50 | 18 |
315 bar 4568 psi |
| AME18LMG08EL.1 | M26X1.5 | 1/2 | 27 | 14.00 | 14.50 | 22.00 | 18 |
315 bar 4568 psi |
| AME18LMG12EL.1 | M26X1.5 | 3/4 | 32 | 16.00 | 14.50 | 22.00 | 18 |
315 bar 4568 psi |
| AME22LMG08EL.1 | M30X2 | 1/2 | 32 | 14.00 | 16.50 | 24.00 | 22 |
160 bar 2320 psi |
| AME22LMG12EL.1 | M30X2 | 3/4 | 32 | 16.00 | 16.50 | 24.00 | 22 |
160 bar 2320 psi |
| AME22LMG16EL.1 | M30X2 | 1 | 41 | 18.00 | 17.50 | 25.00 | 22 |
160 bar 2320 psi |
| AME28LMG12EL.1 | M36X2 | 3/4 | 41 | 16.00 | 17.50 | 25.00 | 28 |
160 bar 2320 psi |
| AME28LMG16EL.1 | M36X2 | 1 | 41 | 18.00 | 17.50 | 25.00 | 28 |
160 bar 2320 psi |
| AME35LMG16EL.1 | M45X2 | 1 | 46 | 18.00 | 17.50 | 28.00 | 35 |
160 bar 2320 psi |
| AME35LMG20EL.1 | M45X2 | 1.1/4 | 50 | 20.00 | 17.50 | 28.00 | 35 |
160 bar 2320 psi |
| AME42LMG20EL.1 | M52X2 | 1.1/4 | 55 | 20.00 | 19.00 | 30.00 | 42 |
160 bar 2320 psi |
| AME42LMG24EL.1 | M52X2 | 1.1/2 | 55 | 22.00 | 19.00 | 30.00 | 42 |
160 bar 2320 psi |
|
Код товара |
F1 | F2 |
H mm |
L1 mm |
L2 mm |
L3 mm |
T mm |
Давление |
|---|---|---|---|---|---|---|---|---|
| AME06SMG04EL.1 | M14X1.5 | 1/4 | 19 | 12.00 | 13.00 | 20.00 | 6 |
630 bar 9137 psi |
| AME06SMG08EL.1 | M14X1.5 | 1/2 | 27 | 14.00 | 18.00 | 25.00 | 6 |
630 bar 9137 psi |
| AME08SMG04EL.1 | M16X1.5 | 1/4 | 19 | 12.00 | 15.00 | 22.00 | 8 |
630 bar 9137 psi |
| AME08SMG06EL.1 | M16X1.5 | 3/8 | 22 | 12.00 | 15.50 | 22.50 | 8 |
630 bar 9137 psi |
| AME10SMG04EL.1 | M18X1.5 | 1/4 | 19 | 12.00 | 14.50 | 22.00 | 10 |
630 bar 9137 psi |
| AME10SMG06EL.1 | M18X1.5 | 3/8 | 22 | 12.00 | 15.00 | 22.50 | 10 |
630 bar 9137 psi |
| AME10SMG08EL.1 | M18X1.5 | 1/2 | 27 | 14.00 | 17.50 | 25.00 | 10 |
630 bar 9137 psi |
| AME12SMG04EL.1 | M20X1.5 | 1/4 | 22 | 12.00 | 16.50 | 24.00 | 12 |
630 bar 9137 psi |
| AME12SMG06EL.1 | M20X1.5 | 3/8 | 22 | 12.00 | 17.00 | 24.50 | 12 |
630 bar 9137 psi |
| AME12SMG08EL.1 | M20X1.5 | 1/2 | 27 | 14.00 | 17.50 | 25.00 | 12 |
630 bar 9137 psi |
| AME14SMG06EL.1 | M22X1.5 | 3/8 | 24 | 12.00 | 18.50 | 26.50 | 14 |
630 bar 9137 psi |
| AME14SMG08EL.1 | M22X1.5 | 1/2 | 27 | 14.00 | 19.00 | 27.00 | 14 |
630 bar 9137 psi |
| AME16SMG06EL.1 | M24X1.5 | 3/8 | 27 | 12.00 | 18.00 | 26.50 | 16 |
400 bar 5801 psi |
| AME16SMG08EL.1 | M24X1.5 | 1/2 | 27 | 14.00 | 18.50 | 27.00 | 16 |
400 bar 5801 psi |
| AME16SMG12EL.1 | M24X1.5 | 3/4 | 32 | 16.00 | 20.50 | 29.00 | 16 |
400 bar 5801 psi |
| AME20SMG08EL.1 | M30X2 | 1/2 | 32 | 14.00 | 20.50 | 26.00 | 20 |
400 bar 5801 psi |
| AME20SMG12EL.1 | M30X2 | 3/4 | 32 | 16.00 | 20.50 | 32.00 | 20 |
400 bar 5801 psi |
| AME20SMG16EL.1 | M30X2 | 1 | 41 | 18.00 | 22.50 | 39.00 | 20 |
400 bar 5801 psi |
| AME25SMG12EL.1 | M36X2 | 3/4 | 41 | 16.00 | 23.00 | 32.00 | 25 |
400 bar 5801 psi |
| AME25SMG16EL.1 | M36X2 | 1 | 41 | 18.00 | 23.00 | 39.00 | 25 |
400 bar 5801 psi |
| AME30SMG16EL.1 | M42X2 | 1 | 46 | 18.00 | 23.50 | 39.00 | 30 |
400 bar 5801 psi |
| AME30SMG20EL.1 | M42X2 | 1.1/4 | 50 | 20.00 | 23.50 | 39.00 | 30 |
400 bar 5801 psi |
| AME38SMG20EL.1 | M52X2 | 1.1/4 | 55 | 20.00 | 26.00 | 49.00 | 38 |
315 bar 4568 psi |
| AME38SMG24EL.1 | M52X2 | 1.1/2 | 55 | 22.00 | 26.00 | 55.00 | 38 |
315 bar 4568 psi |
