argm

ARGM
ARGM
Варианты исполнения

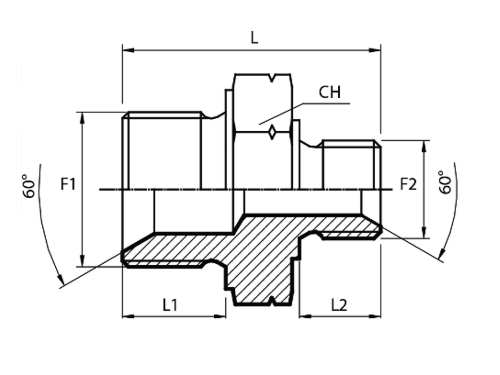

Код
товара
F1
F2
H
mm
L
mm
L1
mm
L2
mm
Давление
ARGM0210 1/8 M10X1 14 25.00 9.50 9.50 350 bar
5075 psi
ARGM0212 1/8 M12X1.5 17 27.50 9.50 11.00 350 bar
5075 psi
ARGM0410 1/4 M10X1 19 27.50 11.00 9.50 350 bar
5075 psi
ARGM0412 1/4 M12X1.5 19 30.00 11.00 11.00 350 bar
5075 psi
ARGM0414 1/4 M14X1.5 19 30.00 11.00 11.00 350 bar
5075 psi
ARGM0416 1/4 M16X1.5 22 32.50 11.00 12.50 350 bar
5075 psi
ARGM0418 1/4 M18X1.5 24 35.00 11.00 14.00 315 bar
4568 psi
ARGM0422 1/4 M22X1.5 27 35.00 11.00 14.00 315 bar
4568 psi
ARGM0612 3/8 M12X1.5 22 31.50 12.50 11.00 350 bar
5075 psi
ARGM0614 3/8 M14X1.5 22 32.50 12.50 11.00 350 bar
5075 psi
ARGM0616 3/8 M16X1.5 22 34.50 12.50 12.50 350 bar
5075 psi
ARGM0618 3/8 M18X1.5 24 36.50 12.50 14.00 315 bar
4568 psi
ARGM0620 3/8 M20X1.5 27 36.50 12.50 14.00 315 bar
4568 psi
ARGM0622 3/8 M22X1.5 27 37.00 12.50 14.00 315 bar
4568 psi
ARGM0812 1/2 M12X1.5 27 35.00 14.00 11.00 315 bar
4568 psi
ARGM0814 1/2 M14X1.5 27 35.00 14.00 11.00 315 bar
4568 psi
ARGM0816 1/2 M16X1.5 27 36.50 14.00 12.50 315 bar
4568 psi
ARGM0818 1/2 M18X1.5 27 38.00 14.00 14.00 315 bar
4568 psi
ARGM0820 1/2 M20X1.5 27 38.00 14.00 14.00 315 bar
4568 psi
ARGM0822 1/2 M22X1.5 27 38.00 14.00 14.00 315 bar
4568 psi
ARGM0824 1/2 M24X1.5 30 40.00 14.00 16.00 315 bar
4568 psi
ARGM0826 1/2 M26X1.5 32 41.00 14.00 16.00 250 bar
3625 psi
ARGM1018 5/8 M18X1.5 30 41.00 16.00 14.00 315 bar
4568 psi
ARGM1020 5/8 M20X1.5 30 41.00 16.00 14.00 315 bar
4568 psi
ARGM1022 5/8 M22X1.5 30 41.00 16.00 14.00 315 bar
4568 psi
ARGM1218 3/4 M18X1.5 32 40.00 16.00 14.00 250 bar
3625 psi
ARGM1220 3/4 M20X1.5 32 40.00 16.00 14.00 250 bar
3625 psi
ARGM1222 3/4 M22X1.5 32 41.00 16.00 15.00 250 bar
3625 psi
ARGM1226 3/4 M26X1.5 32 42.00 16.00 16.00 250 bar
3625 psi
ARGM1230 3/4 M30X1.5 38 46.00 16.00 18.00 200 bar
2900 psi
ARGM1622 1 M22X1.5 41 45.00 18.00 15.00 200 bar
2900 psi
ARGM1626 1 M26X1.5 41 46.00 18.00 16.00 200 bar
2900 psi
ARGM1630 1 M30X1.5 41 48.00 18.00 18.00 200 bar
2900 psi
ARGM2030 1.1/4 M30X1.5 50 52.20 20.00 18.00 160 bar
2320 psi
ARGM2038 1.1/4 M38X1.5 50 52.50 20.00 18.00 160 bar
2320 psi
